A High-Capacity Electric Cargo Bike for Serious Urban Transport

The Urban Arrow Cargo L is one of the most capable and efficient electric cargo bikes designed for professional city logistics. With a load volume of 260–300 litres and a maximum permissible vehicle weight of 275 kg, it is a proven replacement for vans in busy urban areas. From independent couriers to major international companies, businesses across Europe rely on the Cargo L for fast, clean, congestion-free delivery.

Modular Design for Complete Flexibility

Urban Arrow’s modular cargo platform allows you to choose the exact setup that fits your business. Select from multiple front-frame configurations including the Aluminium Lockable Box, Flight Case Box, Flatbed, or even a fully customised solution. Whether transporting parcels, tools, food, equipment or delicate items, the Cargo L can evolve with your needs.

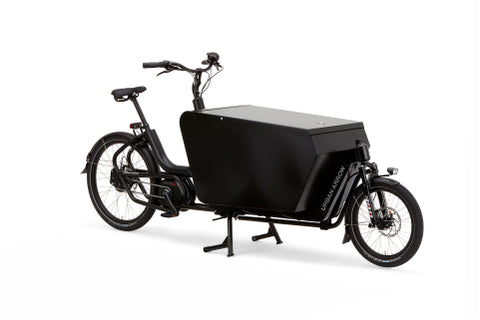

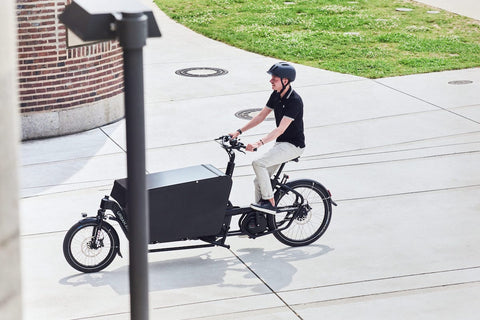

The Aluminium Lockable Box

One of the most popular options, the Aluminium Box offers full weather protection and security. A sealed lid and Yale lock ensure your load remains safe, dry and protected during every journey. Perfect for couriers, catering, service technicians and last-mile deliveries.

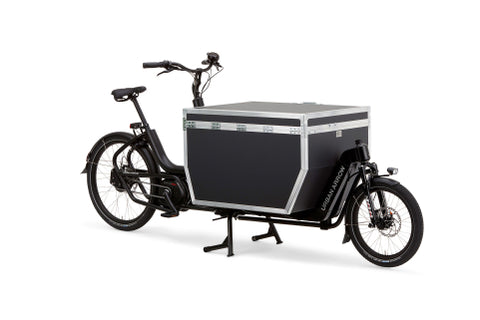

Flight Case Box Option

The Flight Case Box features an aluminium frame with Astroboard panels — durable, lightweight and impact-resistant. Its honeycomb internal structure protects delicate deliveries, making it ideal for equipment transport, tech, medical supplies or high-value goods.

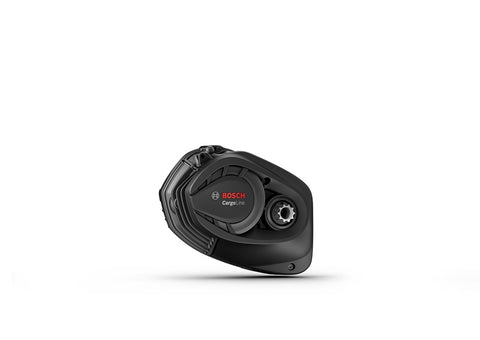

Powered by Bosch Cargo Line

The Bosch Cargo Line motor delivers exceptional performance tailored specifically for heavy loads. With up to 400% pedal assistance and 85 Nm of torque, the Cargo L accelerates smoothly from a standstill and climbs hills with confidence even when fully loaded. Upgrade the standard 500 Wh PowerPack to a 1000 Wh DualBattery system for extended daily range.

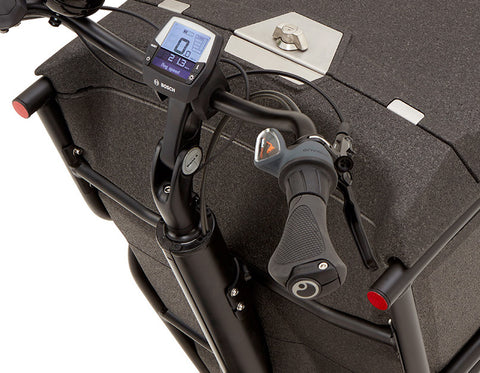

Enviolo Stepless Gearing & Gates Carbon Belt

The Enviolo Heavy Duty hub provides smooth, stepless shifting with no gear steps and minimal maintenance. Because the gearing is fully internal, it stays protected from dirt and weather. Paired with a Gates Carbon Belt Drive, the system is quiet, clean and engineered for industrial-grade durability up to 250 kg permissible vehicle weight.

Hydraulic Braking Built for Heavy Loads

The Cargo L is fitted with powerful Tektro Dorado hydraulic disc brakes, offering reliable stopping power even when fully loaded and riding in wet conditions. Combined with the stable long-wheelbase platform and low centre of gravity, the Cargo L ensures safe, predictable handling on every delivery.

Branding & Visibility

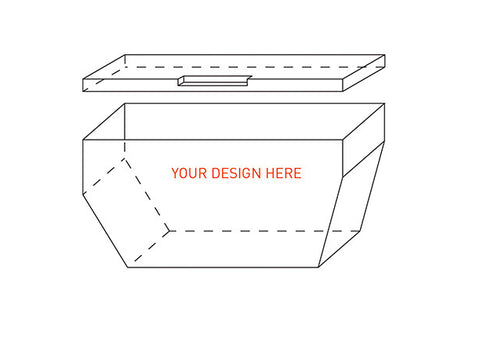

Turn your Urban Arrow into a mobile billboard. All cargo boxes can be fully branded with your company’s artwork, turning every ride into a marketing opportunity across the city.

Technical Specifications

Motor: Bosch Cargo Line (Performance CX), 85 Nm torque
Battery: 500 Wh (upgradeable to DualBattery 1000 Wh)
Cargo Volume: approx. 260–300 litres
Maximum Load Capacity: 275 kg (gross vehicle weight)

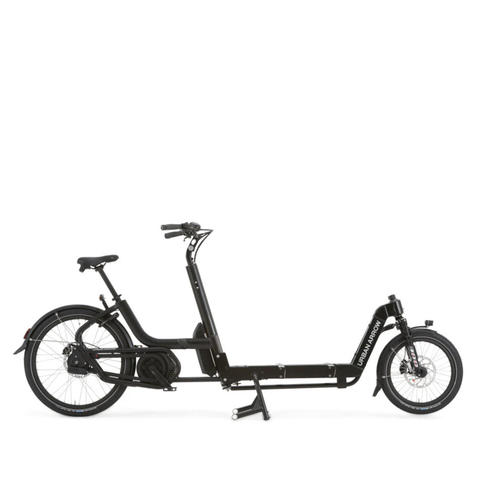

Flatbed Length: 74 cm (Cargo L)
Box Dimensions (L): Top 74 × 60 cm / Bottom 64 × 55 cm
Gearing: Enviolo N-380 stepless CVT
Belt Drive: Gates Carbon Belt
Brakes: Shimano / Tektro Dorado hydraulic disc brakes
Wheel Size: 20" front / 26" rear
Bike Weight: 50–54 kg (without cargo)
Range (Turbo): approx. 40 km
Range (DualBattery): approx. 80 km
Range (ECO): approx. 80 km
